About Aircraft Range: Understanding and Using Aircraft Range Visualization

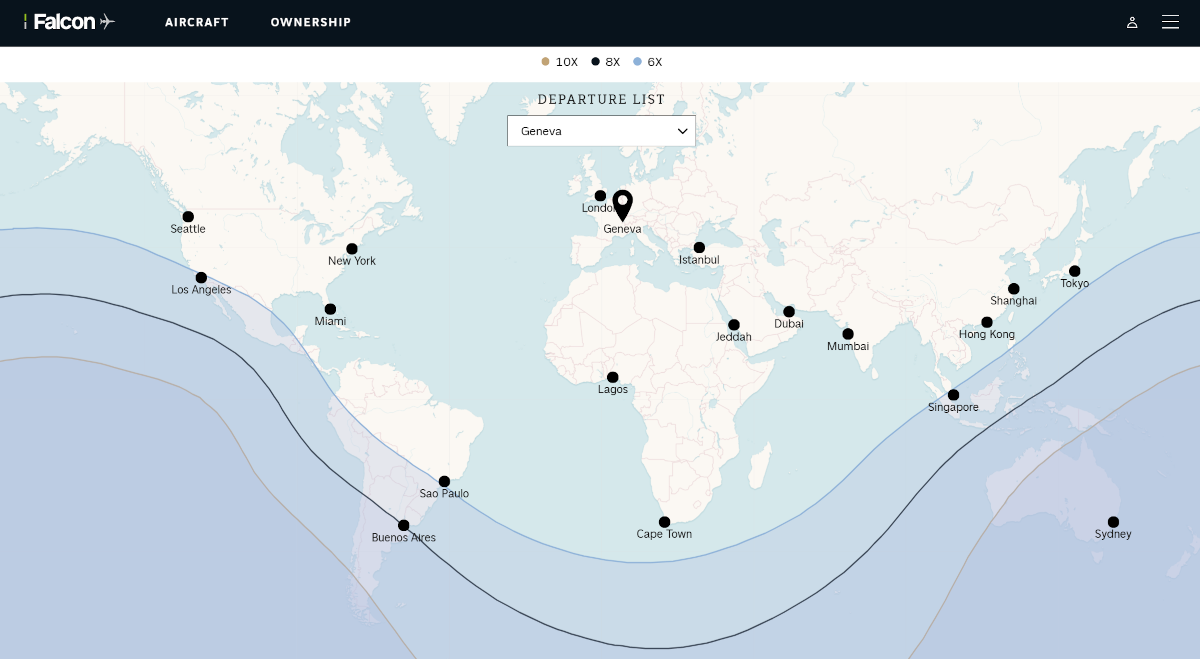

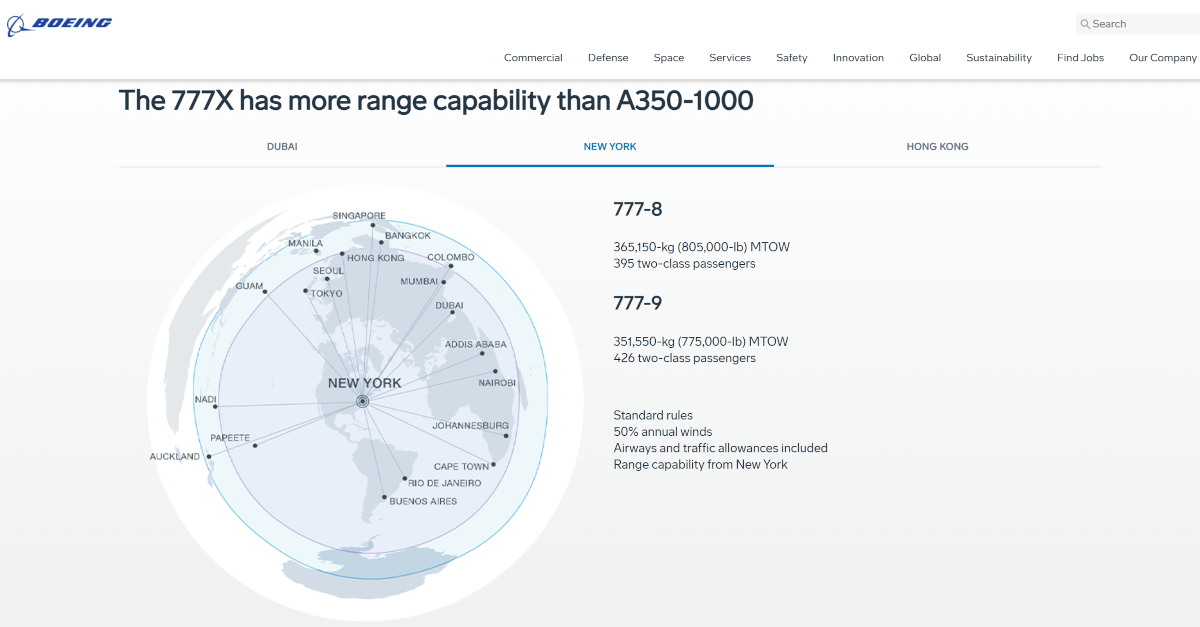

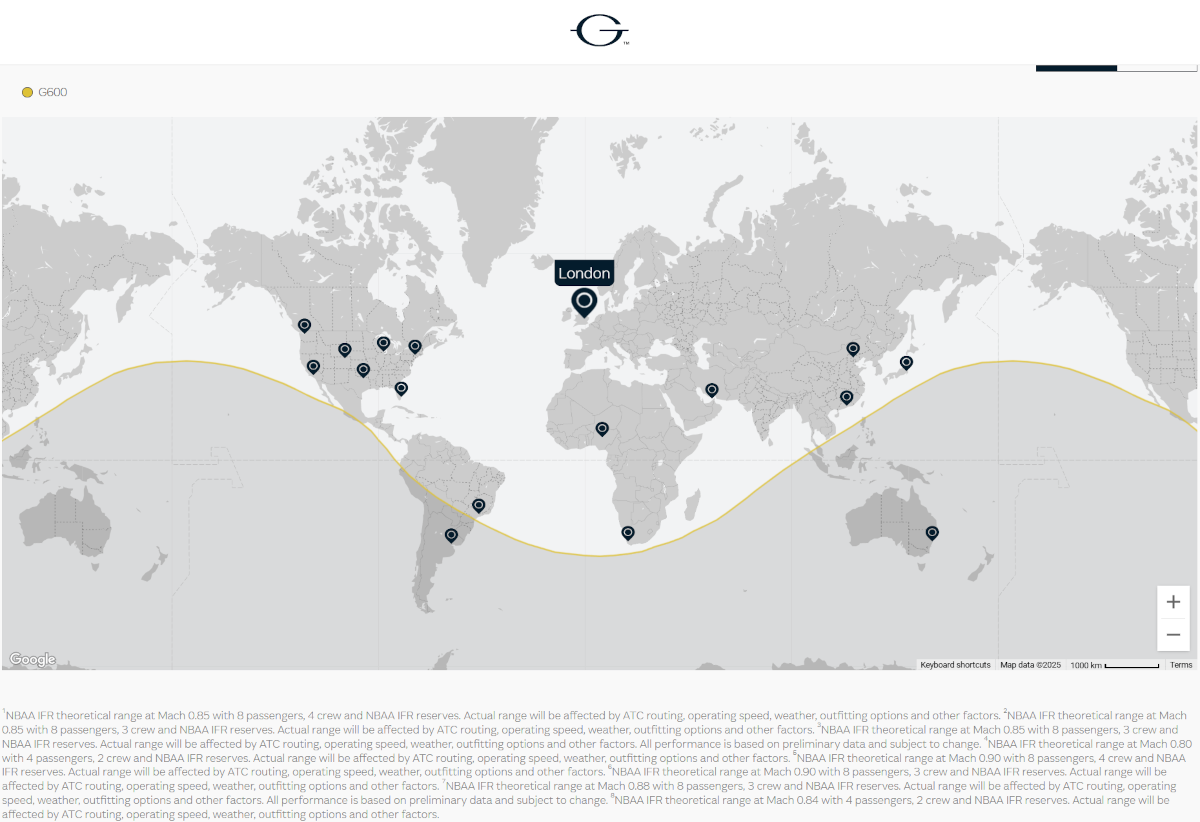

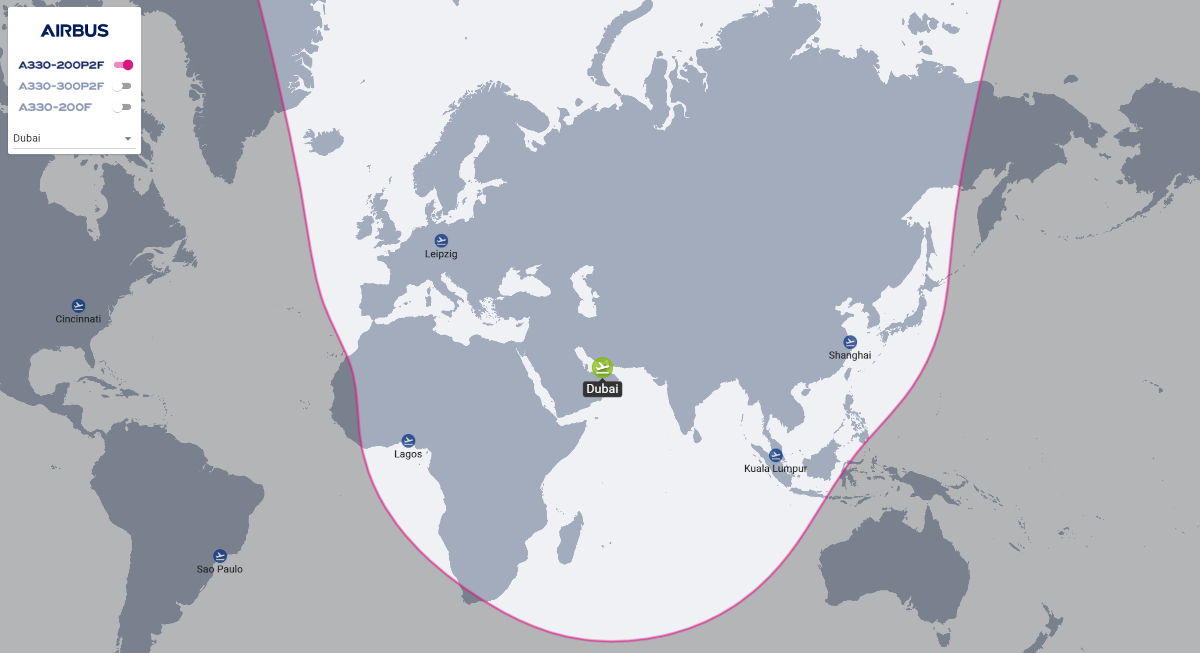

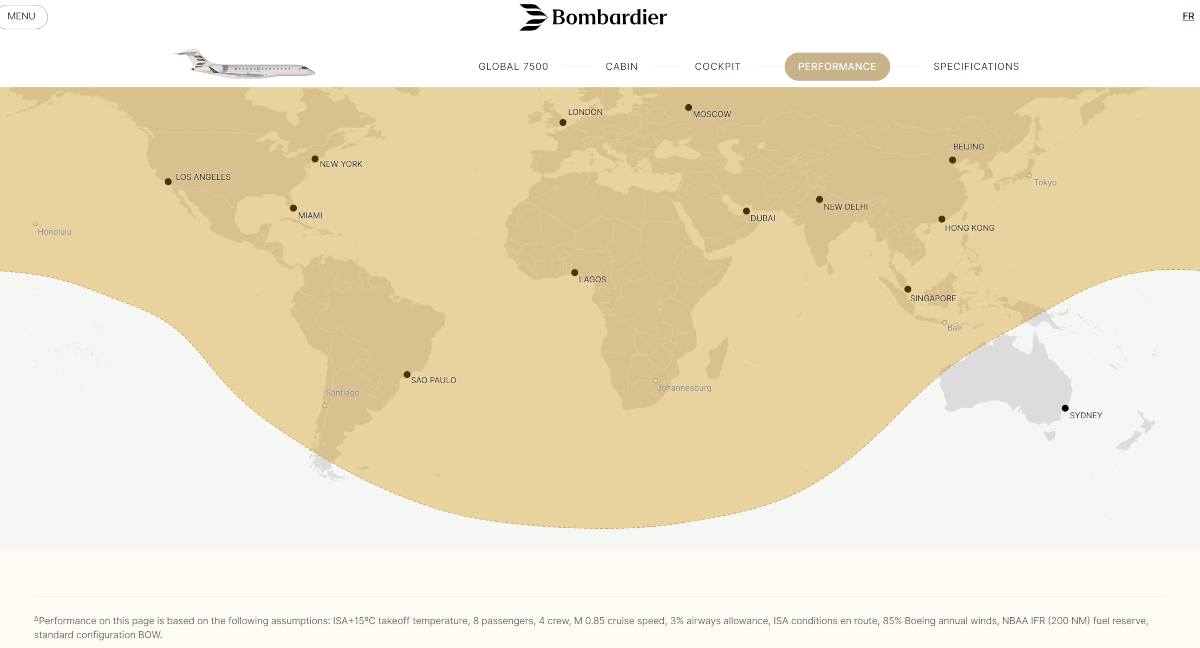

Aircraft-Range.com is a unique platform that allows users to visualize aircraft range while incorporating real annual wind data. Unlike most tools that calculate range under “no wind” conditions, which often lead to misleading results, this tool provides realistic insights into how winds impact an aircraft’s operational range. It is an essential resource for anyone serious about evaluating aircraft for reaching specific destinations.

Understanding Wind Effects

Aircraft travel relative to the air, making wind a critical factor in their performance, especially at cruising altitudes where winds are significantly stronger.

• Headwinds (winds blowing against the aircraft's direction) reduce speed and range.
• Tailwinds (winds blowing with the aircraft's direction) increase speed and extend range.

Depending on the wind direction and strength, flight times can vary by up to an hour, resulting in differences of hundreds of miles in range.

Aircraft Range Wind Dataset

To produce realistic wind-adjusted range estimates, Aircraft-Range.com is built on a long-term global wind climatology derived from more than four decades of meteorological reanalysis data compiled from multiple scientific sources. The processing pipeline ingests extremely large atmospheric datasets — exceeding hundreds of terabytes — and transforms them into a structured statistical wind model suitable for directional flight performance analysis. The atmosphere is discretized into a global three-dimensional grid composed of millions of spatial cells (“geocubes”). Each cell contains a statistical representation of prevailing wind conditions across altitude layers and directional sectors, enabling consistent global coverage while preserving large-scale atmospheric patterns relevant to aircraft operations.

each with its corresponding wind profile.

Wind Statistics and Temporal Weighting

Wind statistics are produced through a proprietary multi-stage aggregation framework designed to balance climatological stability with operational relevance. The methodology incorporates temporal weighting techniques that emphasize recent atmospheric behavior while preserving long-term structural patterns necessary for robust global modeling. The resulting dataset captures persistent directional wind characteristics without attempting to forecast real-time weather. This approach ensures that calculated range envelopes reflect realistic long-term operating conditions rather than transient meteorological events.

How Wind Effects Are Calculated

Because exact weather conditions cannot be predicted for a specific flight far in advance, Aircraft-Range.com uses probabilistic wind scenarios derived from historical climatology. Range envelopes are computed by combining aircraft performance models with directional statistical wind fields to estimate realistic outbound and inbound reach under defined probability thresholds. The commonly used 85% probability level represents conservative operational wind conditions that are expected to be equaled or better during the majority of flights over long-term statistical averages. These probabilistic envelopes illustrate how wind asymmetry can significantly alter practical aircraft reach compared to traditional no-wind range figures.

Calculating Range with Wind: The Triangle of Velocities Problem

The wind’s effect on an aircraft’s flight path is addressed through the Triangle of Velocities. This principle illustrates how ground speed, the speed over the Earth’s surface, results from combining the aircraft’s airspeed with the wind velocity as vectors.

Key effects include:

• Headwinds reduce ground speed and range.
• Tailwinds increase ground speed and range.
• Crosswinds require heading adjustments and can indirectly affect range.

Over long flights, changing wind conditions add complexity to the calculation. Our model addresses this by simulating the flight through millions of atmospheric cells, each with localized wind vectors. By iteratively solving the Triangle of Velocities along the route, we ensure accurate modeling of cumulative wind effects on range. In predictive mode and in real-time ETA he graph plots distance on the x-axis and cumulative probability (0 to 1) on the y-axis. The line smoothly shows the increasing probability that the aircraft range will be less than or equal to that distance. Hovering over points will show exact probability values.

Adjust cutoff z-value:

Cutoff: 1.04 σ — Cumulative Probability: 85%

Inbound and Outbound Flights

One insight offered by Aircraft-Range.com is the difference in inbound and outbound ranges due to wind effects. Certain destinations may be reachable in one direction but not the other way back. These differences are visualized through animations that highlight areas affected by one-way feasibility.

Aircraft Performance

To calculate range accurately, our model simulates three-dimensional flight paths, incorporating variations in wind conditions at different altitudes. This requires aircraft-specific performance data, including climb and descent profiles. We use data from open-source repositories like Eurocontrol

(https://contentzone.eurocontrol.int/aircraftperformance). Registered users can also input custom aircraft specifications for tailored calculations.

Visualization Features

• Wind Animation: High-altitude statistical winds are displayed as an animation to help users better understand their effects.

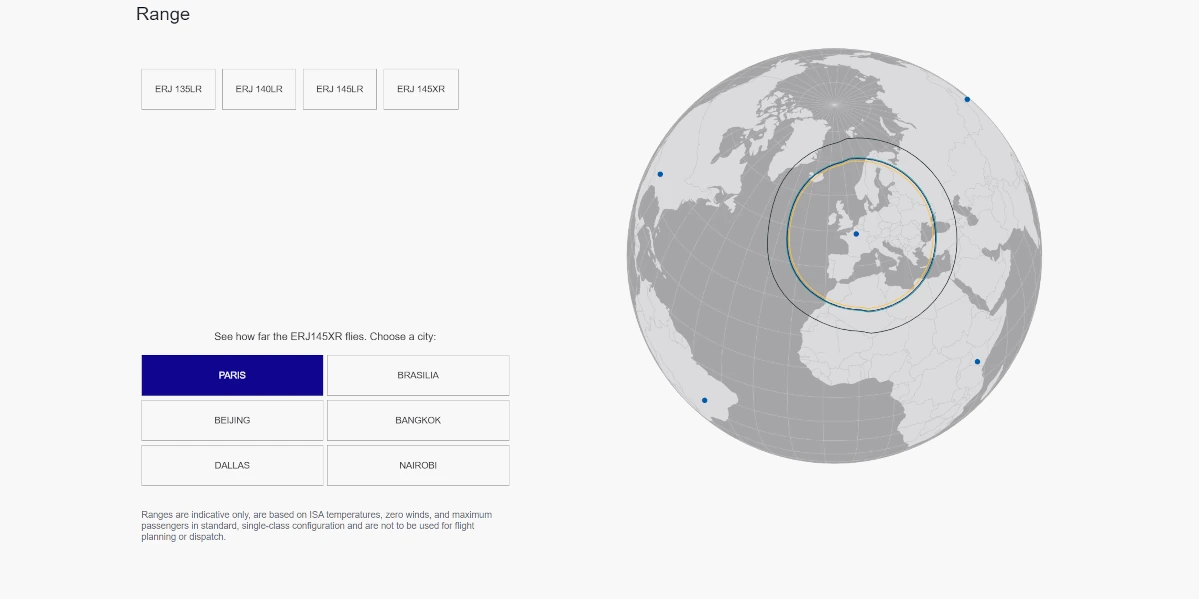

• Projection Options: Users can choose from several Earth projections to visualize ranges in their preferred format.
• Earth Customization: Customize country colors to suit specific needs or preferences.

Seasonality and Beyond

Range calculations assume an 85% probability threshold. However, users can explore alternate probability assumptions for more customized results. Seasonal variations also significantly impact wind conditions, meaning range calculations will differ depending on the time of year.

For further customization or advanced calculations, please contact us at info@aircraft-range.com.

About the author:

Jean-Louis Cehovic is an aviation expert with decades of experience in aircraft performance analysis...

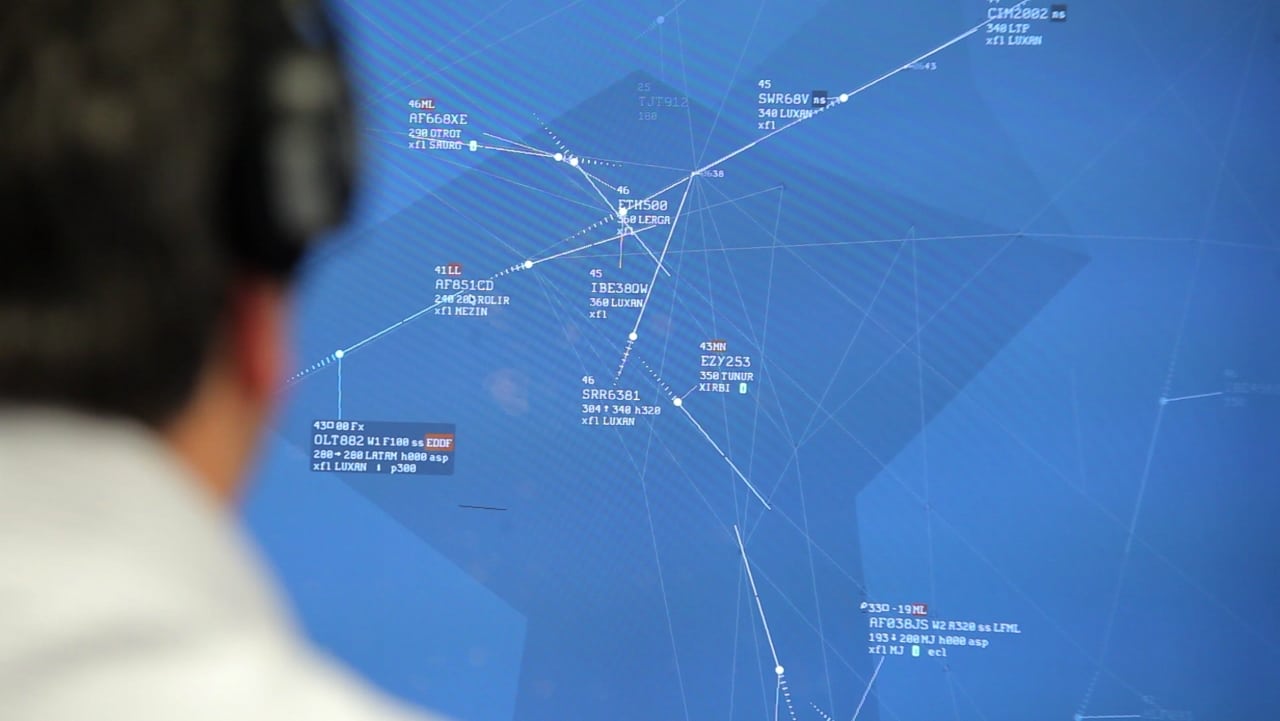

The founder of aircraft-range, Jean-Louis Cehovic holds a master's degree in aeronautical engineering from ENAC – the French Civil Aviation Academy. He spent nearly a decade at Thales, the company behind TopSky, the world's leading air traffic control systems, used to manage over 80% of the global airspace.

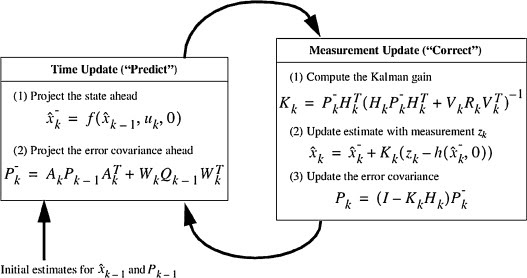

During his time at Thales, Jean-Louis specialized in developing and optimizing algorithms for calculating flight times across various routes. His work provided air traffic controllers with precise predictions of aircraft positions and Estimated Time of Arrival (ETA). Notably, he pioneered a new method for modeling aircraft trajectories using Extended Kalman Filtering (EKF), a technique well-suited for flight path calculations involving nonlinear dynamics, such as aircraft motion, wind effects, and sensor measurements. His algorithm became a cornerstone of modern aircraft range calculations.

Later in his career, Jean-Louis moved into executive and commercial roles within the business aviation sector, including leadership responsibilities at a business jet operator before transitioning into aircraft brokerage and performance analysis. Through extensive operational and commercial experience, he identified a persistent gap in the industry: while manufacturers publish nominal aircraft range figures, no independent analytical platform existed to visualize how long-term atmospheric conditions — particularly prevailing winds — affect real-world aircraft reach and directional capability. Recognizing that meaningful range analysis required more than traditional performance tables, he initiated the development of a global analytical framework combining aircraft performance modeling with large-scale historical wind climatology. The objective was not to forecast individual flights, but to create a statistically grounded representation of how aircraft range behaves under realistic long-term operating conditions. The resulting platform integrates decades of atmospheric data into a structured global wind model spanning all major flight levels. This analytical foundation enables the calculation of directional and probabilistic range envelopes, providing a more operationally meaningful representation of aircraft reach than conventional no-wind performance figures.

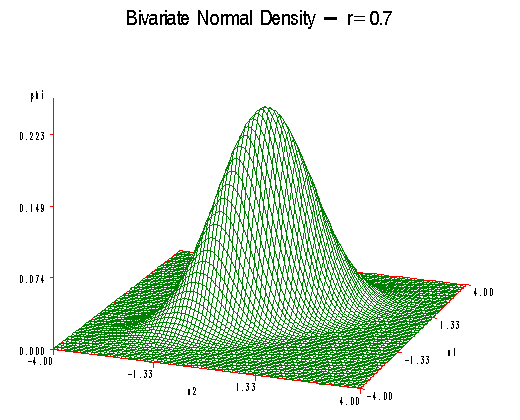

To condense the vast dataset into a usable format without sacrificing accuracy, Jean-Louis applied the Bivariate Normal Distribution

, a mathematical tool used to model relationships between two correlated variables. In this context, the two variables represented wind speed and wind direction, both of which are critical for aircraft performance. The Bivariate Normal Distribution enabled Jean-Louis to capture the statistical characteristics of wind at each location, including its average behavior and variability, while maintaining correlations between the two variables. By leveraging this model with a team of mathematicians and industry leaders, he could reduce the complexity of the dataset while retaining the essential probabilistic information. The result was a streamlined dataset that accurately represented global atmospheric conditions with a high degree of reliability.

Equipped with this advanced wind model and an optimized aircraft path estimator, through Aircraft-Range, Jean-Louis developed a state-of-the-art tool for calculating ranges of aircrafts with statistical winds. The flight path estimator was designed to perform millions of atmospheric cell computations within seconds, ensuring both precision and efficiency. The algorithm was further enhanced with multi-threaded parallel processing, leveraging multi-core processors to deliver results to users in mere milliseconds.

To complement the computational backend, Jean-Louis sought a user-friendly way to present the results. Collaborating with the open-source community, he adopted modern technologies, including Java and D3.js, for bespoke data visualization. One of the key features he implemented was the Adaptive Resampling Algorithm of D3.js,

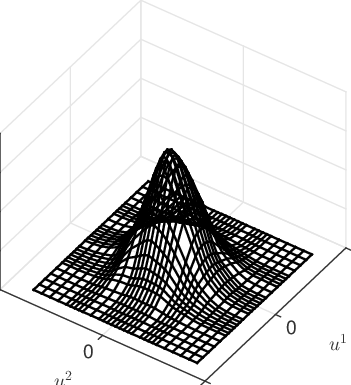

which is designed to dynamically reduce data density in visualizations without losing critical trends or patterns. This algorithm enabled him to display large datasets, such as global wind conditions or range maps, in an interactive and visually comprehensible way, even in web browsers with limited processing power. These tools also addressed the challenges of map projection distortions. Inspired by Tissot's indicatrix—a method developed by French mathematician Nicolas Auguste Tissot in 1859 to measure map projection distortion

—Jean-Louis provided users with projection options that minimized such distortions with different views such as the Paterson projection used by default.

This project represents the culmination of collaborative innovation and continuous refinement, delivering a powerful, user-friendly tool for aviation professionals to accurately calculate and visualize aircraft range. By combining statistical wind models with advanced interactive visualization, it enables a deeper, real-world understanding of aircraft performance across varying flight conditions. From aircraft manufacturers and airlines to business jet operators, charter brokers, leasing companies, banks, and aviation consultants, this platform supports more confident, data-driven decision-making at every level of the industry. Explore the tool today and experience a smarter way to plan, compare, and evaluate aircraft range with precision and clarity.
